The side panels and airlocks all go in, and the Millennium Falcon looks nearly complete. Oddly, this month wasn’t too big of a build; the painting took longer to complete.

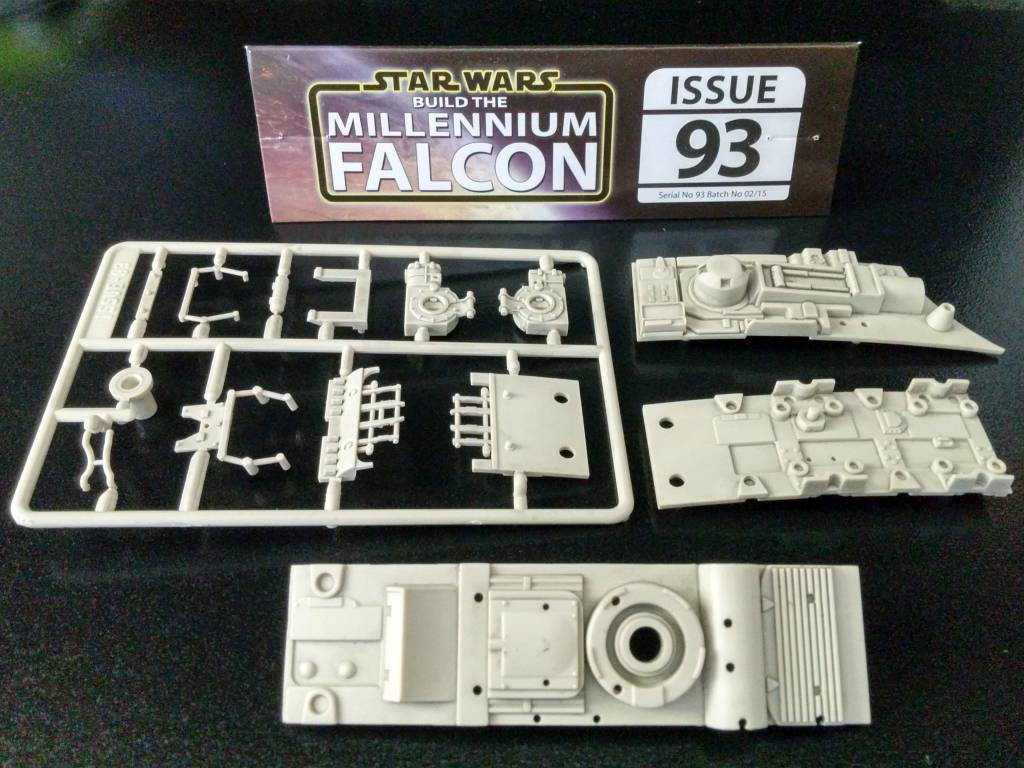

Issue 93 Parts

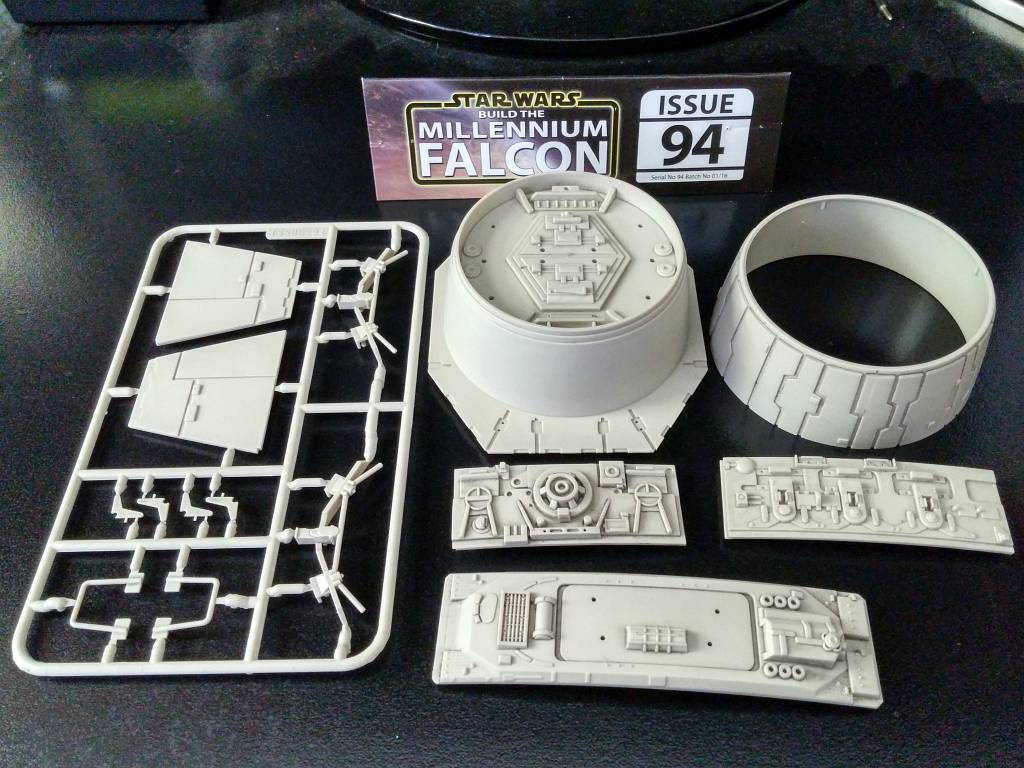

Issue 94 Parts

Discover Disney treasures. Shop our Affiliate Store!

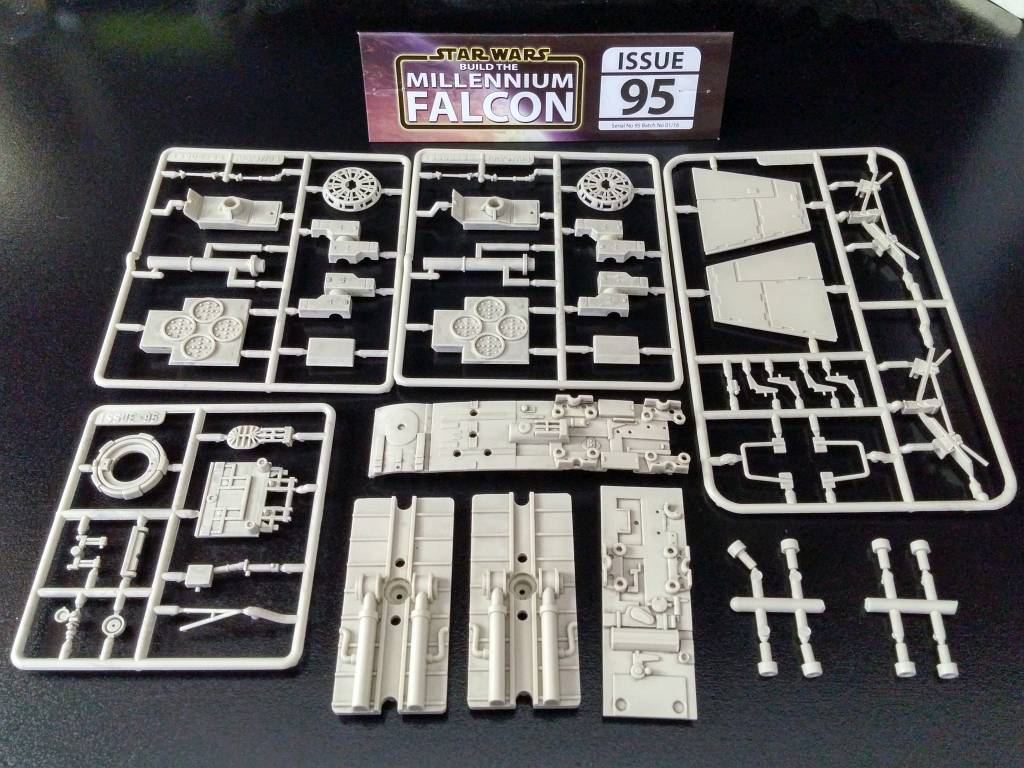

Issue 95 Parts

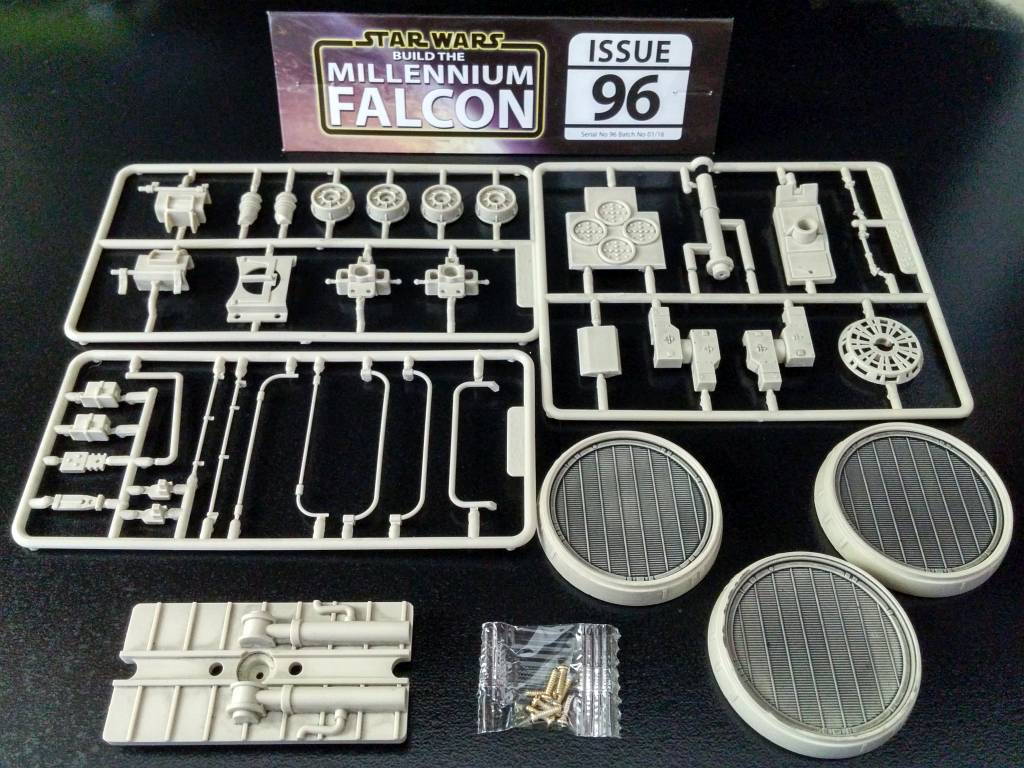

Issue 96 Parts

Completing the Sides

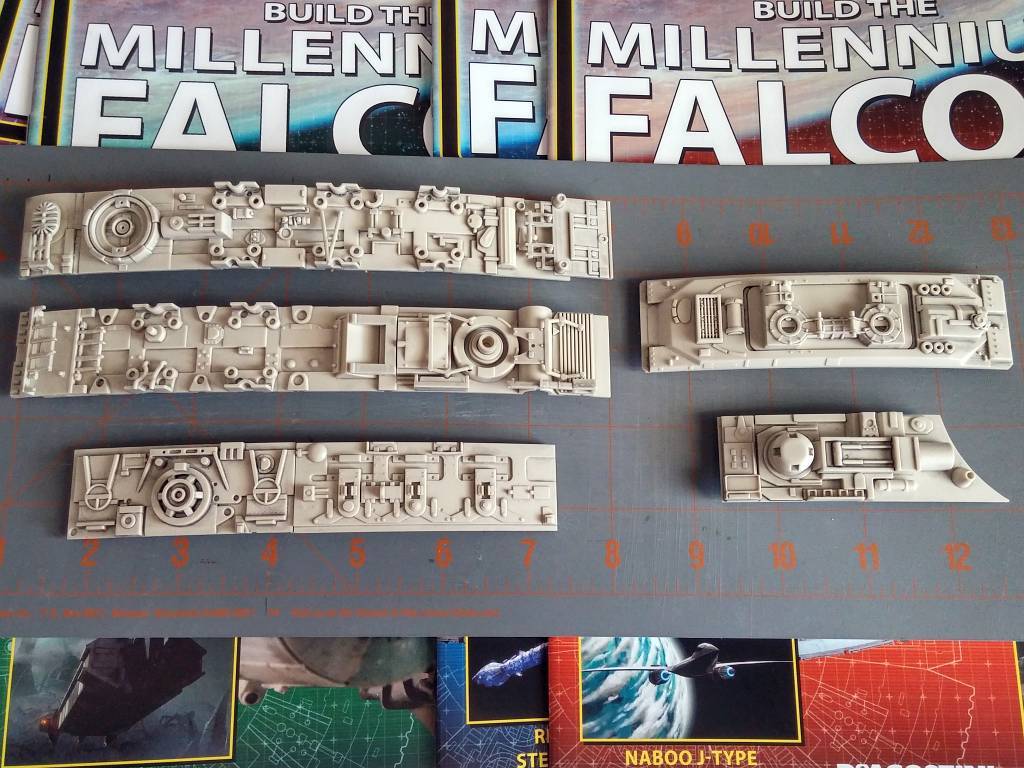

Side Panels 01

Side Panels 02

Side Panels 03

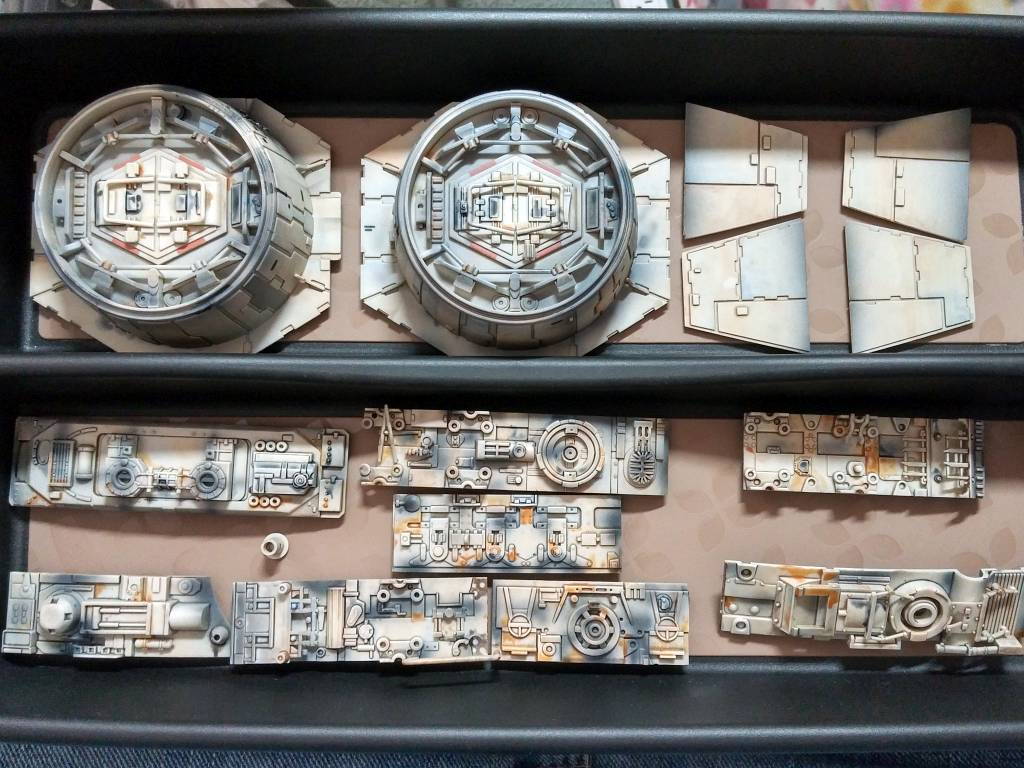

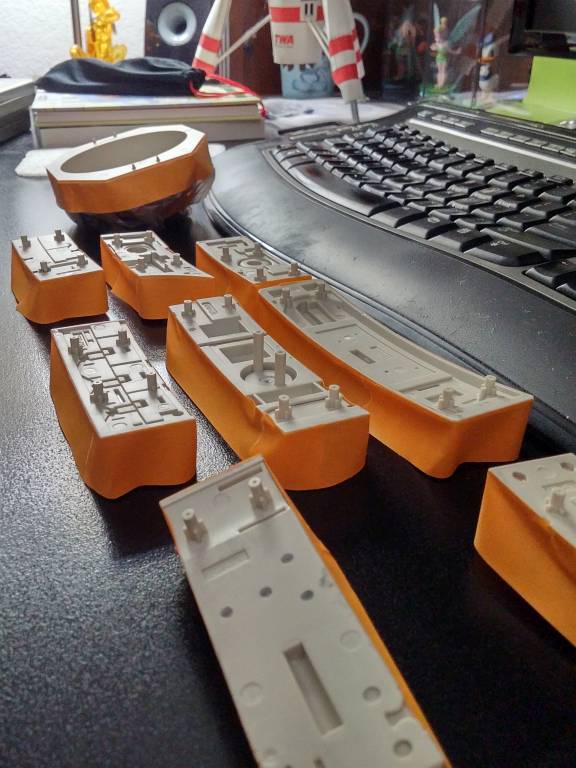

After masking and light-blocking the panels, I taped the parts for the sides (not the air locks) together so that the paintwork would line up. There were also a couple of plan-on details that I also glued into place by dry-fitting the panels.

Side Panels 04

Side Panels 05

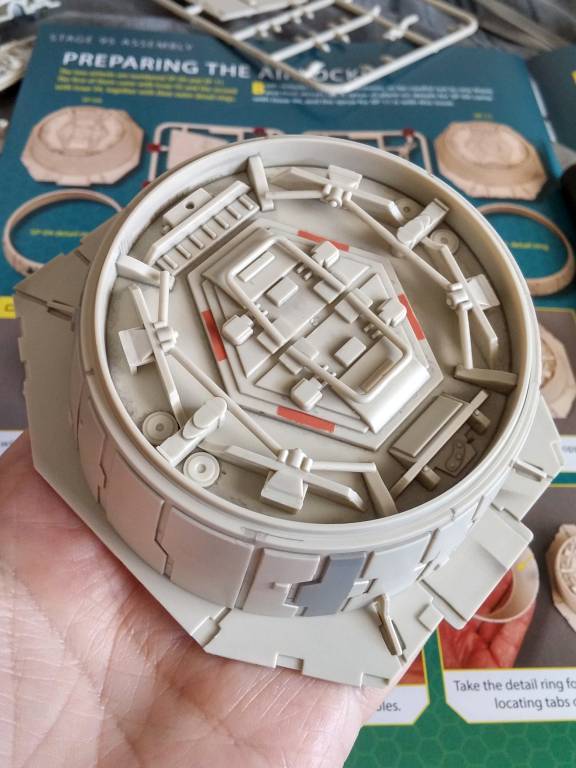

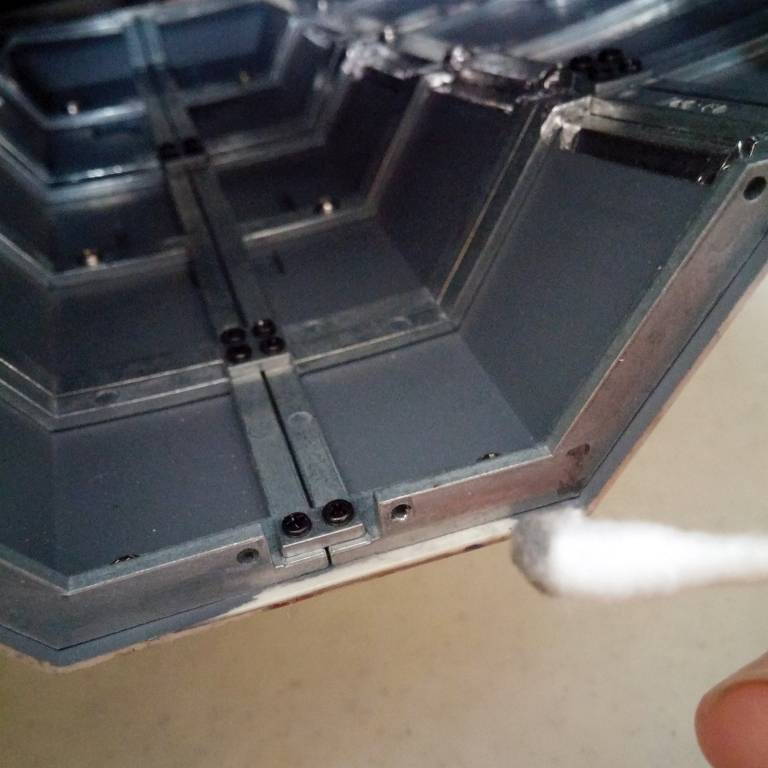

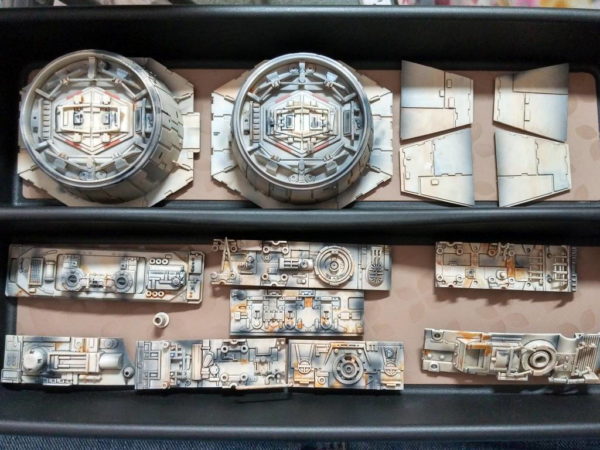

After painting and varnishing, I prepped the edges of the airlock frames by removing some gray primer with a cotton swab soaked in acetone.

Side Panels 06

Actually fitting the frames is where it got a little tricky. The side panels don’t come into contact with any of the plastic, so I can’t use my go-to cement, and I don’t trust super glue to last for too long without cracking. So, I decided to use some 2-part liquid epoxy. It’s goopy enough to fill in gaps and secure the panels to the metal frame.

Side Panels 08

Side Panels 07

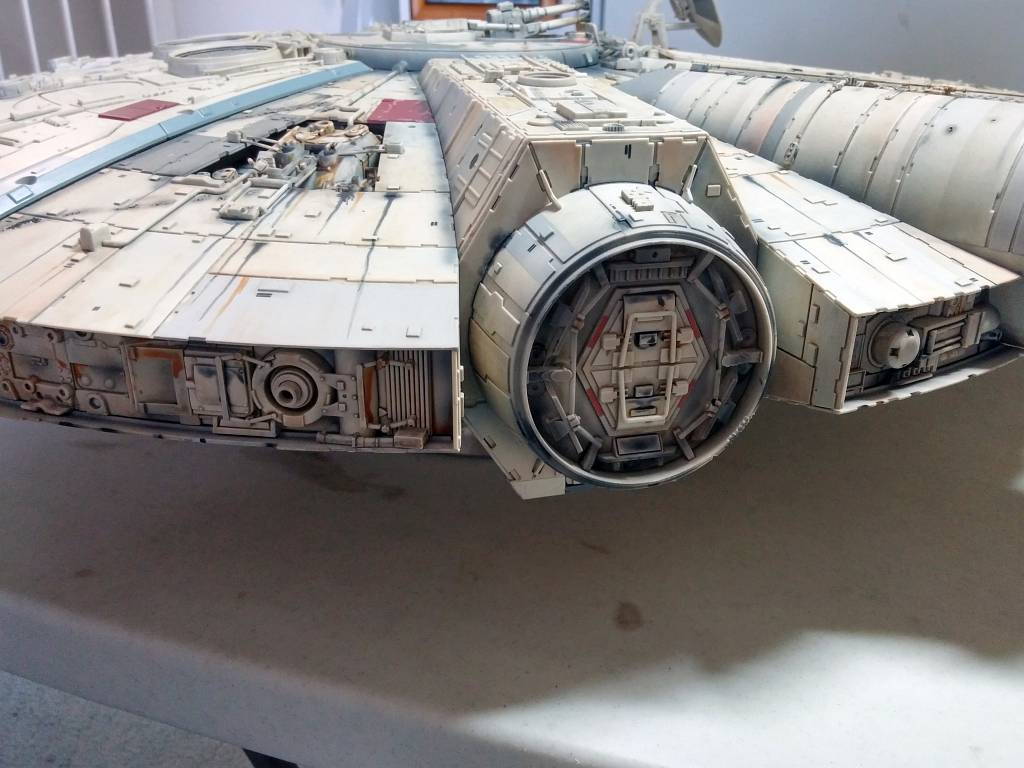

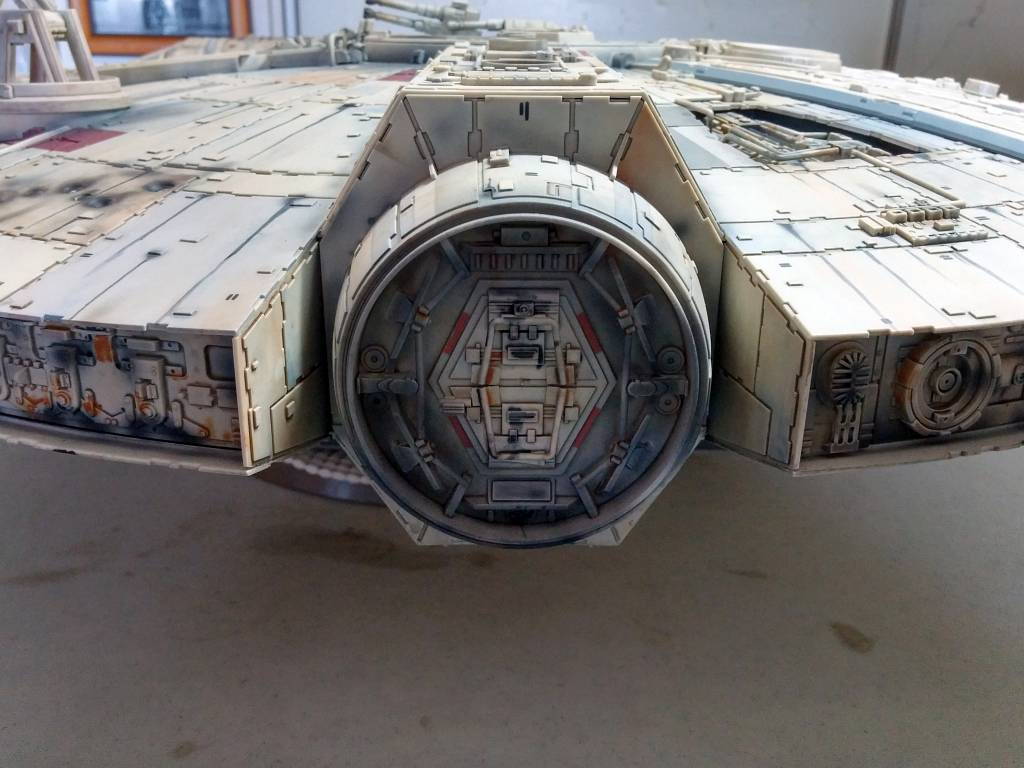

The large airlock panels didn’t fit at all. The area that they were supposed to fit into had shrunk a couple of millimeters due to the weight of the model. But, with several soft, firm blows with my fist, they finally went in.

Side Panels 09

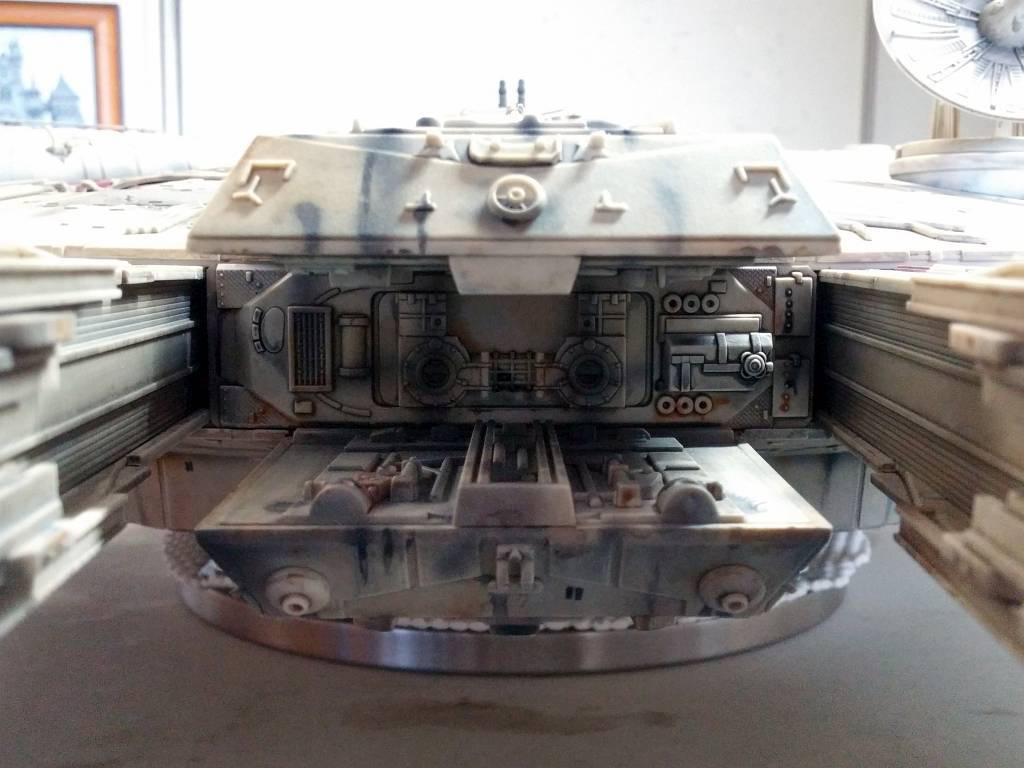

The panel between the mandibles was tricky, too; it just didn’t want to fit. But, it eventually did.

Working on the Engine Cover

Engine Cover 01

Engine Cover 02

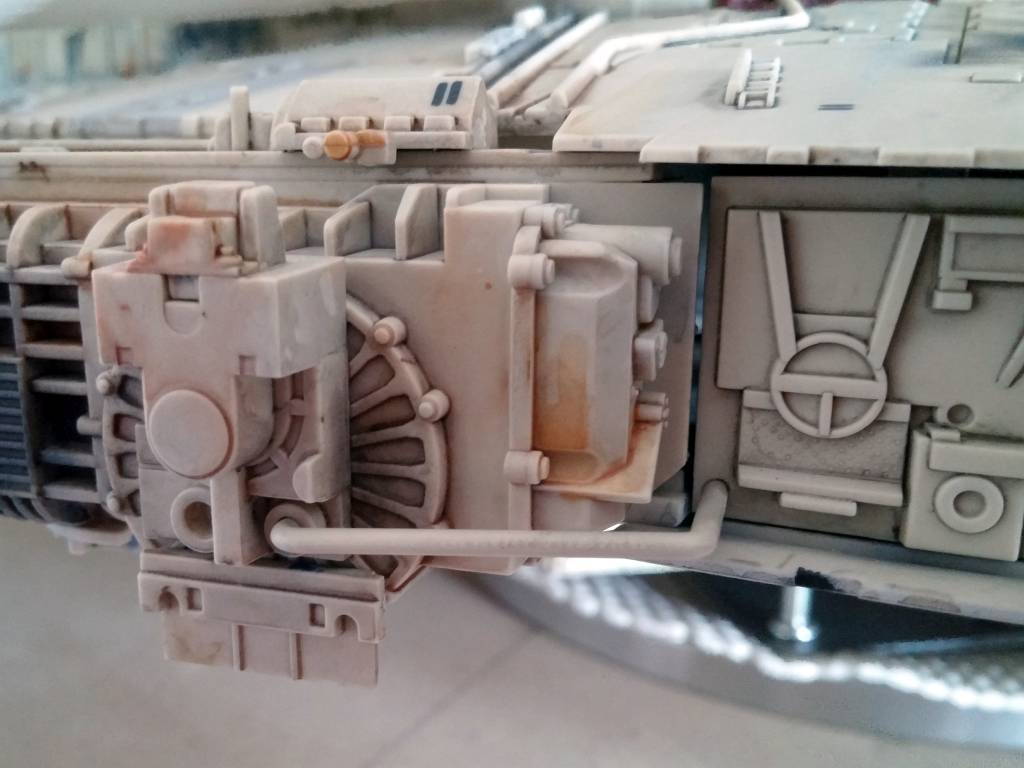

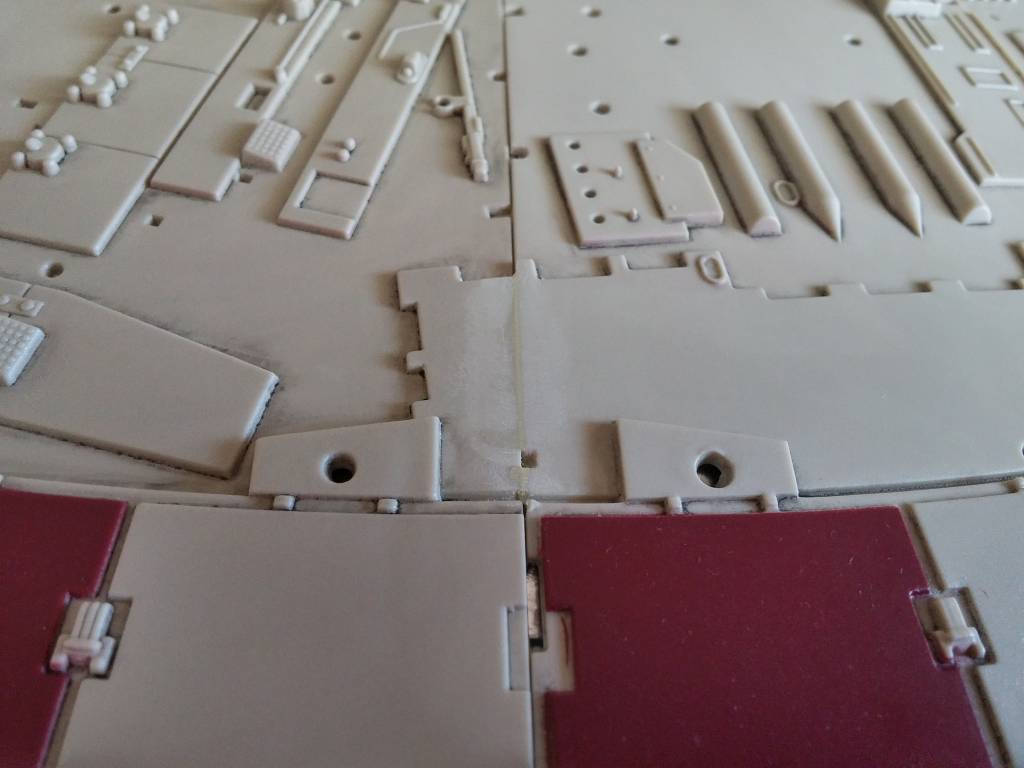

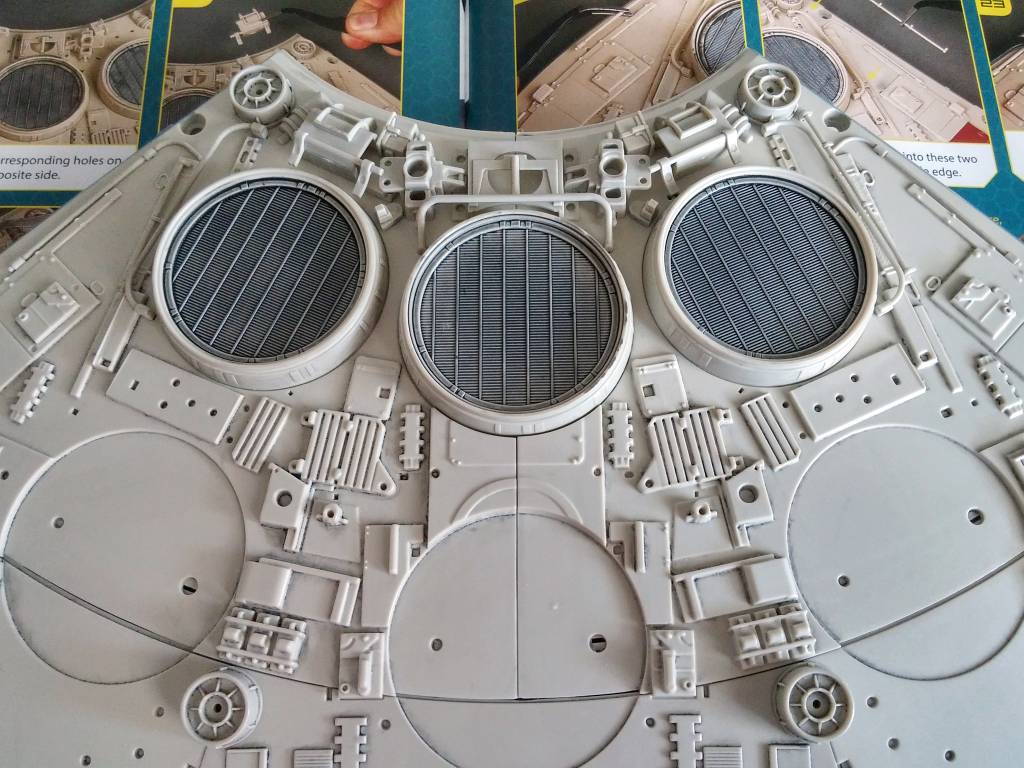

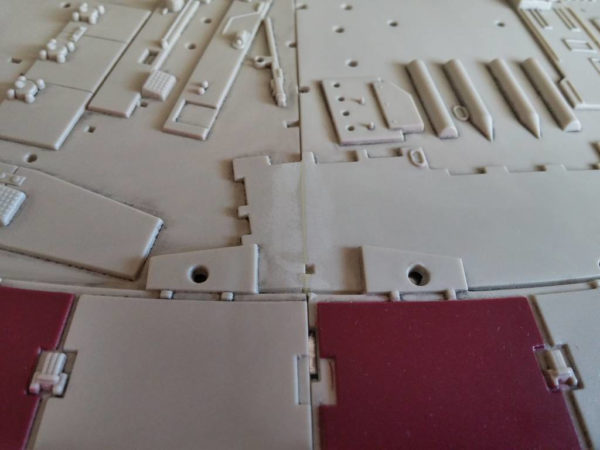

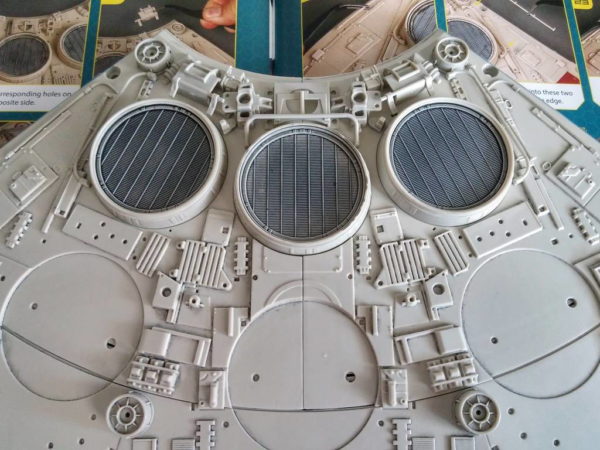

The engine cover had several parts to glue on, but it was nothing compared to all of the stuff that I’ll have to glue on next month. I also filled, sanded, and painted a couple of small seams that were bothering me.

Jumping Ahead

Landing Gear

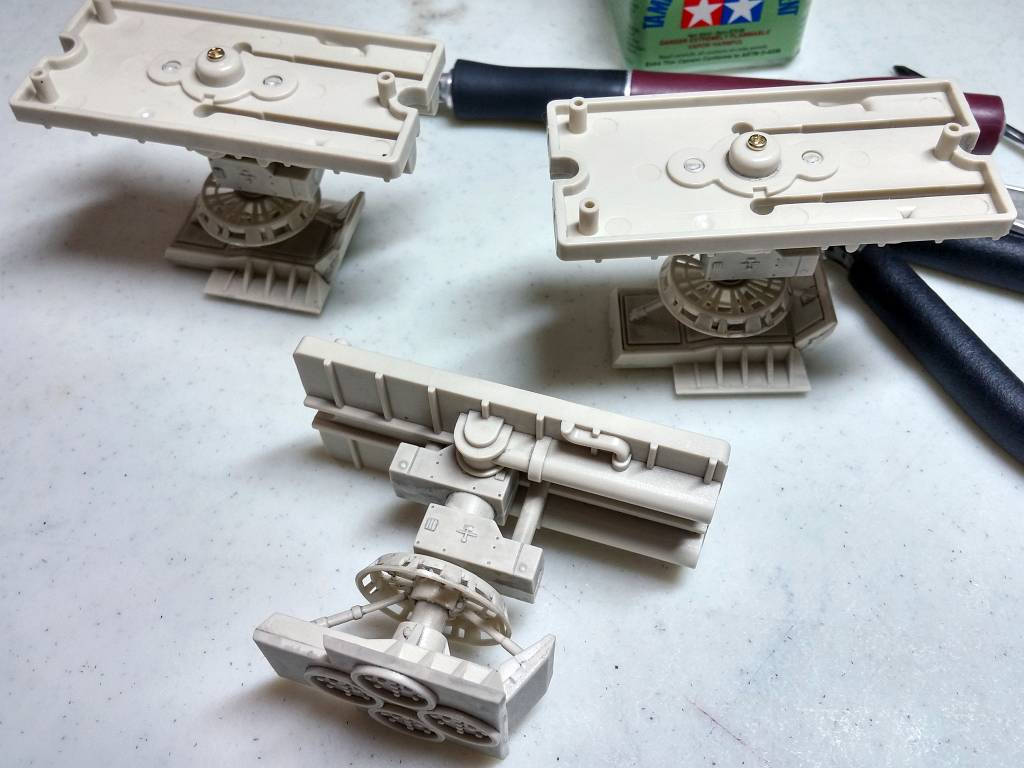

Since I had the parts for three of the landing legs, I went ahead and assembled them. I’ll hold off on painting them for now; I want the paintwork to match.

The instructions say that the landing legs are designed to not be removed without being damaged. Essentially, they’re supposed to go in and stay in. But, as many builders have figured out, a few magnets and some customization can make them easily removable.
